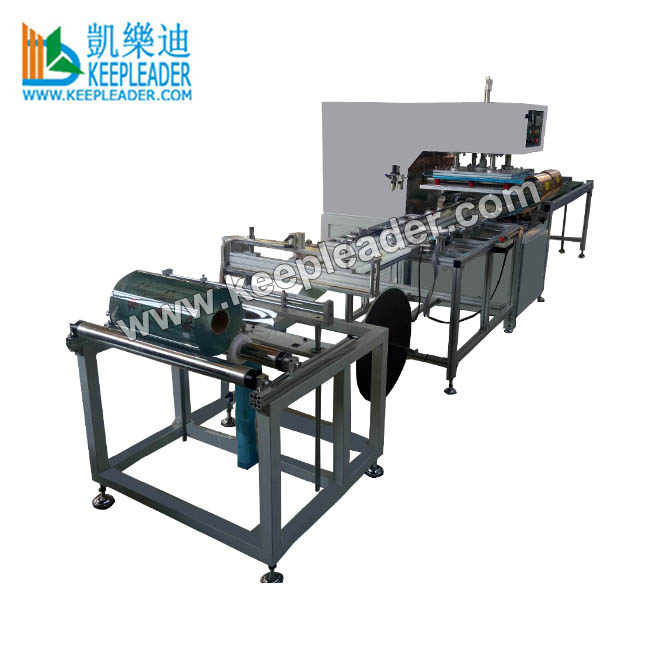

Plastic door curtain making high frequency welding machine

01: Parameter

02: Application

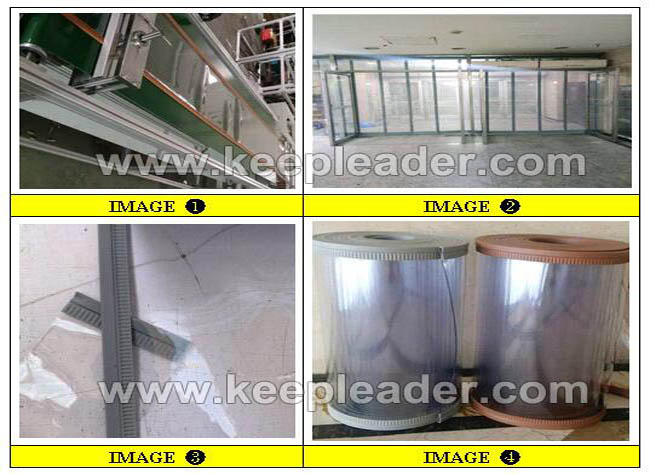

Plastic door curtain making high frequency welding machine is professional production line for magnetic door curtain making for its magnetic edge welding with plastic strip, welded PVC door curtain is more beautiful that the usual PVC curtain, the magnetic door curtain is mainly used in major shopping malls, supermarkets, warehouses, family hotel, restaurants, food processing plants, fresh processing enters, beverage processing plants, pharmaceutical plants, a variety of plants by insect repellent, a variety of health and safety areas and other public places, it also can block the invasion of cold wind in winter and keep the air-conditioned outside and mosquito invasion in summer

03: Working Principle

Plastic door curtain making machine adopts high frequency welding to seal magnetic edge at two side of transparent Plastic strip, this curtain making high frequency welding machine has roll feeding and unwinding device to save the foot space in automatic processing, the door curtain made of thermoplastic that have a high dielectric constant, in this process, an electric field is generated near the joint of plastic trip and magnetic edge, the direction of which is alternated approximately twenty-seven million times a second, every time the electric field changes, the dipole molecules of the plastic curtain attempt to flip around the realign themselves to the new field orientation, because this movement is impaired by inertia and friction, the molecules do not flip in union, this constant relative movement of the molecules results in intermolecular friction which result in heat and subsequently, melting, high frequency welding for plastic door curtain making has best performance in robust and water-poof sealing of curtain strip and magnetic edge

04: Character

Curtain strip Welding Width is adjustable from 150~750mm

Automatic unwinding, transmission, wrapping, welding and rewinding

Transmission clamping force, distance is adjustable in precision

High frequency cabinet is integrated with the mainframe to save the floor space to the maximum

Built-in high sensitive spark suppressor to test the mold and oscillation tube

Line filter protection avoids electric field radiation so that the equipment operates stably

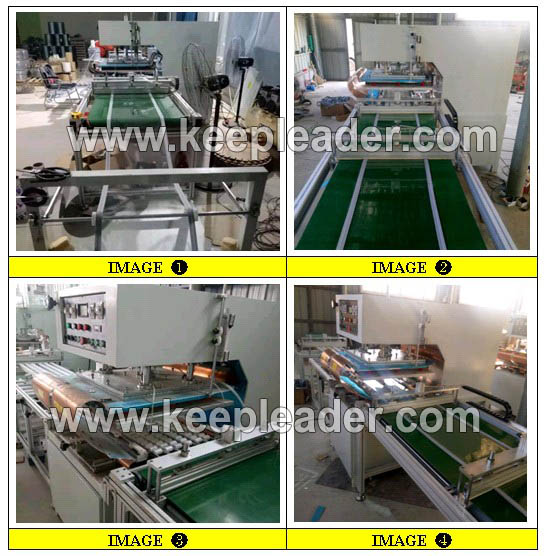

Plastic Door Curtain Making High Frequency Welding Machine has ♦1:Automatic unwinding, ♦2: transmission, ♦3: wrapping,♦ 4: welding and ♦5: rewinding

Plastic Door Curtain Making High Frequency Welding Machine comes with transmission table, automatic feeding, winding and unwelding and necessary tooling for ready working

Plastic Door Curtain Making High Frequency Welding Machine can weld the magnetic edge with PVC Door Curtain at Width:150~650mm

We welcome the opportunity to explain every last details and all of the options available in fact, and. won’t waste your time and ours, our goal is to educate our potential customers and let them make an informed decision, please contact KEEPLEADER for more info of Plastic Door Curtain Making High Frequency Welding Machine
