The most important factors influence Automatic High Frequency PVC PU Welding Machine: #1: electrical power #2: pressure applied #3: welding time #4: cooling time, Finding the optimal process parameters will depends on your specific equipment, the materials involve and the specific geometries including thickness and area to be welded, achieving optimal results is often an experimental process guided by experience, as a guiding rule, the thicker material and focus on short welding times you need, the stronger electrical power you need

01: Application

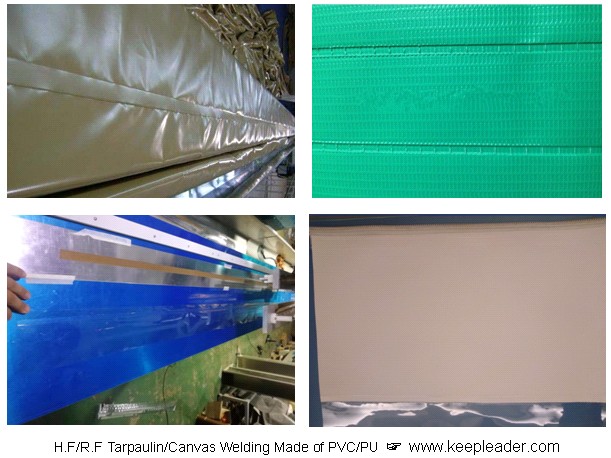

High Frequency PVC PU Welding Machine is the case of radio frequency welding (R.F/H.F bonding) for PVC PU TPU Membrane, the welding heat is produced by molecular oscillations (Friction heat) directly in the PVC, PU material to be welded, oscillation tube transmits the high frequency oscillation usually 27.12mhz and pressure to the welding tool (electrode), the pressed surface is the jointing area, where the molecules inside the PVC, PU material to start to move and generate heat which softens the material, No heat is applied from outside, it is generated inside the PVC,PU, After cooling the welded surface at a constant pressure, the material is fused and welding is ready, the weld joint can be as strong or even stronger that the surrounding material, high frequency welding is suitable for welding/making/sealing/bonding the membrane structure cloth/Film made of PVC, PU, TPU, PETG, other PET Family sheets. Even or Nylon, Textile cloth treated by High frequency (H.F/R.F) reactive Poly material, or adhesive glue Tarpaulin, Canvas, such as stretched ceiling, tents, inflatable pool/boat, truck covers, Biogas balloon/bladder, oil fence, advertising banners, Film screen, canopy, awning, marquee, curtain, swimming ring, air floating, inflatable water trampoline, inflatable water roller, inflatable castle, inflatable slides, inflatable water slides, inflatable water park, inflatable pool slides, inflatable bouncy castle, inflatable jump bed, advertising flexible banner

02: Parameter

03: Character

Using the latest High frequency Technology, the radiation emission is suppressed

Important components is purchased by audited vendors in compliance with international standard

The design and confirmation take priority in resulting a machine is durable, stable, safe

With big size, deep and long throat of material groove

Control by PLC human interface which is user friendly

VC adjustment by stepping motor makes power adjustment easy and highly accurate

Sensitive anti-flash unit to protect machine and electrode

H.F welding head is travelling on the table, which is driven by servo-motor and ball bearing rail

Welding speed: 5~10 meters per minute

Universal usage for seam welding made of PVC/PU/TPU Membrane

Laser guiding projector is visible for material poisoning in accurate guidance

Automatic High Frequency PVC PU Welding Machine is mechanical self-building, all of your professional proposals can be into our producing process

 Automatic High Frequency PVC PU Welding Machine has advantages of welding effect: #1: Seal is fluid proof #2: Great shear tear-resistance #3:Non-wicking seam #4: Almost invisible seam

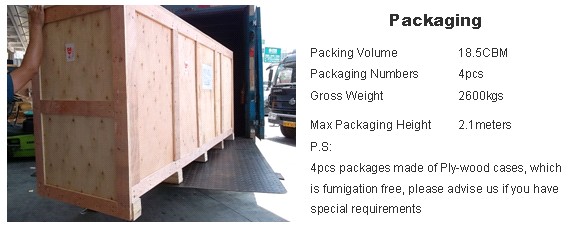

Automatic High Frequency PVC PU Welding Machine is installed, and packed in plywood case, So, it is ready to use once you receive the cargo
