High Frequency Welding PVC Blister Sealing Machine for PVC_PET Blister High Frequency Sealing of Turntable PVC Blister Sealing

Short Description:

High Frequency Welding PVC Blister Sealing Machine 01: Application High Frequency Welding PVC Blister Sealing Machine is keepleader’s auto turntable type of high frequency welding for blister packaging blister sealing, auto turntable can assist on quick loading and unloading by one operator, not only can save the cost but also can save the footprint, it is ideal for end user in blister packaging procedure,  High Frequency Welding PVC Blister Sealing Machine can take various ranges: PVC+PVC bl...


  • Model: KLR-8000ET
  • HF Power: 8000w
  • Upper Electrode : 400*600mm
  • Melting Pressure : 500kgs
  • Material: PVC Blister+Blister or Paper Card
  • Product Detail

    Uses

    Product Tags

    High Frequency Welding PVC Blister Sealing Machine

    01: Application

    High Frequency Welding PVC Blister Sealing Machine is keepleader’s auto turntable type of high frequency welding for blister packaging blister sealing, auto turntable can assist on quick loading and unloading by one operator, not only can save the cost but also can save the footprint, it is ideal for end user in blister packaging procedure,  High Frequency Welding PVC Blister Sealing Machine can take various ranges: PVC+PVC blister clamshell sealing + cutting, PVC Blister clamshell+Paper cards sealing (no cutting), PET Blister clamshell+Paper cards sealing (No cutting), PET+PET Blister clamshell sealing+cutting, if your blister sealing is single, also have mass packaging process, keepleader can equipped with automatic feeding device, or blister high frequency sealing can combined with your auto production line

    02: Parameter

    Name High Frequency Welding PVC Blister Sealing Machine
    Model KLR-5000ET KLR-8000ET
    HF Power 5kw 8kw
    Power Supply 220v,60hz or 380v,50hz/three phase
    Input Power 8KVA 15KVA
    HF frequency 27.12Mhz 27.12Mhz
    Oscillation Tube 7TB5RB 7T69RB
    Anti-Spark System 2D21 2D21
    Melting time 0~10s adjustable 0~10s adjustable
    Temperature 0~400 degree / adjustable
    Rectifier Silicon diode Silicon diode
    Max pressure 400kgs 500kgs
    Gap of electrode 160mm 160mm
    Upper Electrode 250*350mm 400*600mm
    Loading position 400*600mm 600*800mm
    Dimension 1000*1680*1700mm 1300*1700*1900mm
    Net Weight 500kgs 600kgs

    03: Character

    Rotary turntable with 3~5 working stations working alternately

    High Q valve oscillation tube, strong HF power in output

    High sensitive anti-spark tube to protect the sealing mold and blister

    Convenient in operation and changeover welding mold/electrode die and fixture

    No radiation to human and other electronic device

    Famous brands imported components, AirTAC, Omron, CKC and etc

    Sate voltage 24v is applied to control system and press button

    Blister sealing is fast, usually less than 5 seconds and the sealed blister are nice-looking

    High Frequency Welding PVC Blister Sealing Machine is optional in #1:HF Power 5~25kw #2: Manual or Auto Table #3: Robot Arm in loading and unloading #4: Combined Device with production Line #5:Smart Operation Panel

    https://www.hfwelds.com/products/blister-packing-hf-welding/


  • Previous:
  • Next:

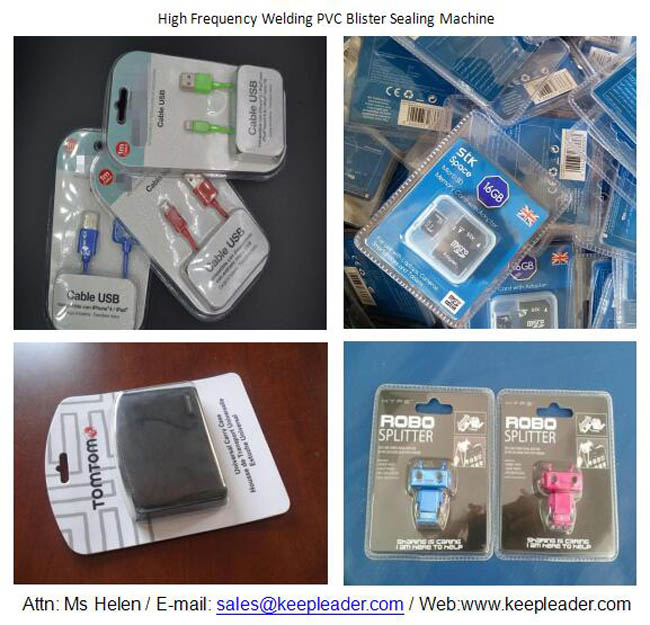

  • High Frequency Welding PVC Blister Sealing Machine can seal PVC Blister+Blister with cutting, PVC Blister Paper Card No cutting, PET Blister+Blister No Cutting, PET Blister+Paper Card No Cutting, PVC Sheets forming/sealing With Cutting
