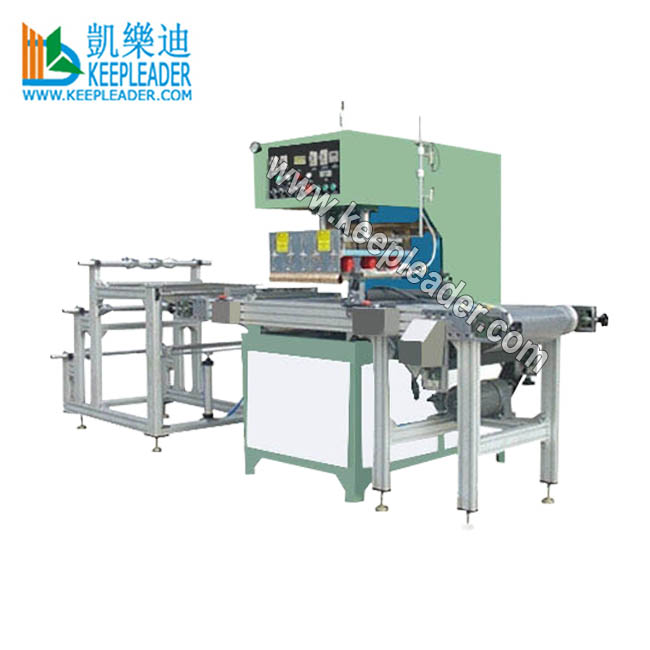

Automatic High Frequency PVC Bag Welding Machine for Plastic Bag_Book Cover_PVC Inner Page Making High Frequency Welding Machine

Short Description:

01: Application Automatic High Frequency PVC Bag Welding Machine is applied for PVC welding and cutting for book cover, name card, soft transparent bags, inner pages, folding bag and many other membrane structure bags, sleeves, pockets with various shapes 02: Parameter Name Automatic High Frequency PVC Bag Welding Machine Model KLR-8000G KLR-12KWG KLR-15KWG Power 8kw 12kw 15kw Input Power 15KVA 20KVA 25KVA Voltage 3 phase 220v/380v 50/60hz or customized Frequency 27.12MHz Recti...


  • Model: KLR-8000G
  • HF Power: 8000w
  • Max Pressure: 600kgs
  • Upper Electrode : 500*700mm
  • Productivity: Equal or less 6000times/8h
  • Product Detail

    Uses

    Tooling

    Shipment

    Product Tags

    01: Application

    Automatic High Frequency PVC Bag Welding Machine is applied for PVC welding and cutting for book cover, name card, soft transparent bags, inner pages, folding bag and many other membrane structure bags, sleeves, pockets with various shapes

    02: Parameter

    Name Automatic High Frequency PVC Bag Welding Machine
    Model KLR-8000G KLR-12KWG KLR-15KWG
    Power 8kw 12kw 15kw
    Input Power 15KVA 20KVA 25KVA
    Voltage 3 phase 220v/380v 50/60hz or customized
    Frequency 27.12MHz
    Rectifier Silicon Diode
    Oscillation Tube 7T69RB E3130RB 8T85RB
    Maximum Pressure 600kg 750kg 1000kg
    Operation mode Pneumatic
    Electrode distance 150mm
    Pressing Stroke 150mm
    Upper Electrode 500*700mm 500*700mm 700*800mm
    Lower electrode 30~300 degree adjustable
    Temperature range 0~10s adjustable
    Productivity Equal or less 6000times/8h
    Net weight 1600~2000kgs
    Dimension 5500*1850*1950mm

    03: Characters

    PLC programming touch screen to control the operation and resetting

    Built-in Arc suppressor to protect the high frequency electrode

    Jamming prevention device, which is also called H.F stabilizer and H.F magnetic leakage suppressor, this device prevents leakages of electric magnetic radiation to avoid jamming other electrical instruments

    H.F stabilizer and high frequency shield to reduce H.F Interference

    Servo motor driven the feeding device for auto roller pulling with tolerance 0.1mm

    Photoelectric positioning and gear puller to apply different feeding

    Feeding, welding is optional, automatic cold-cutting function

    Dual H.F Limits amperes to automatic protect the machine

    Infrared and optical grating

    Over current protective circuit to protect oscillation tube and rectifier H.F deviation

    Components list of Automatic High Frequency PVC Bag Welding Machine

    Component Origin Qty Brand
    Electron Tube Japan 1 Toshiba
    Spark Tube USA 1 5557
    Contactor Japan 1 Fuji
    Air cylinder China Taiwan 4 AirTac
    Electronic Valve China Taiwan 4 AirTac
    Fan China Taiwan 1 Sanjun
    Electric Relay Joint-Venture 8 Omron
    Capacitor China 6 Flying
    Transformer China 2 HWD
    Switch China 2 Bluebird
    PLC China Taiwan 1 Delta
    Touch screen China Taiwan 1 Delta
    Servo Motor Japan 1 Mitsubishi
    Concussion Barrel China 1 Self made

    MFR: KEEPLEADER™ have modified and designed Automatic High Frequency PVC Bag Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

    This Automatic High Frequency PVC Bag Welding Machine is extensively acknowledged by our customers owing to its trouble free performance and functionality

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/


  • Previous:
  • Next:

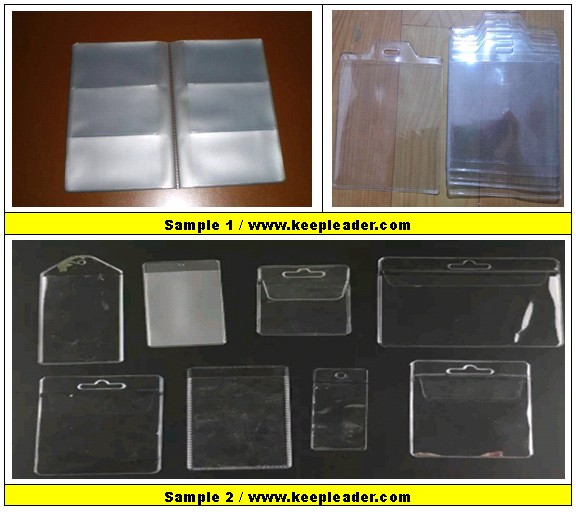

  • Automatic High Frequency PVC Bag Welding Machine can made various shaped PVC Bags, the sealing layers will comply with your bags

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/

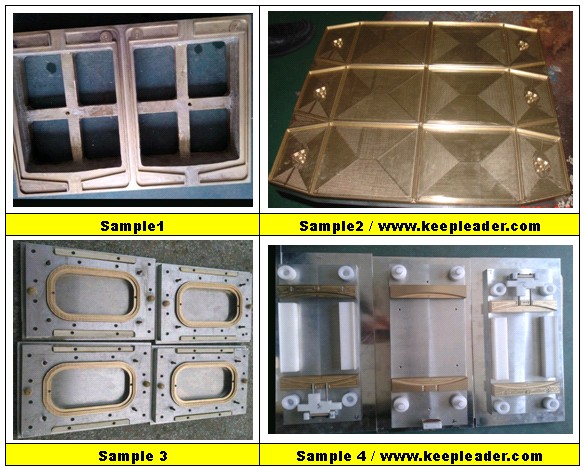

    Automatic High Frequency PVC Bag Welding Machine comes with Customized Forming Mold/H.F electrode, we will confirm its design before production

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/

    Automatic High Frequency PVC Bag Welding Machine also can do customized packaging as your demanding

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/
