Clear Box Making Soft Crease Folding Line Forming HF Machine for Plastic_Transparent_Square_Gift Packaging Boxes H/RF Production

Clear Box Making Soft Crease Folding Line Forming HF Machine for Plastic_Transparent_Square_Gift Packaging Boxes H/RF Production Featured Image
  • Clear Box Making Soft Crease Folding Line Forming HF Machine for Plastic_Transparent_Square_Gift Packaging Boxes H/RF Production

Short Description:

Clear Box Making Soft Crease Folding Line Forming HF Machine Mainly application Clear Box Making Soft Crease Folding Line Forming HF machine Applied for high frequency welding of PVC photo album, internal-page, paper folder, and PVD, EVA and relatives Character Optional of feeding-transferring material simultaneously, adjustable operating speeds. Electronic counting, continuous automatic feeding speed, suitable for different Materials. Exported abrasion proof of transformation, avo...


  • Descrition: Clear Box Making Soft Crease Folding Line Forming HF Machine
  • Model: KLR-8KW-SF
  • H.F Output: 8kw
  • Size of Upper Electrode: 500*700mm
  • Size of Working Plate: 600*800mm
  • Net Weight : 700kgs
    • Download as PDF

    Product Detail

    Details

    Uses

    Contact

    Product Tags

    Clear Box Making Soft Crease Folding Line Forming HF Machine

    Mainly application
    Clear Box Making Soft Crease Folding Line Forming HF machine Applied for high frequency welding of PVC photo album, internal-page, paper folder, and PVD, EVA and relatives
    Character
    Optional of feeding-transferring material simultaneously, adjustable operating speeds.

    Electronic counting, continuous automatic feeding speed, suitable for different Materials.

    Exported abrasion proof of transformation, avoid damaging the mould.

    Photo electricity induction, feeding-collecting simultaneously, precise-controlled.
    Technique specifications
    Model KLR-8000-SF
    Power 8000W
    Voltage 380V 50/60Hz
    Frequency 27.12MHz
    Input power 15KVA
    Rectifier SILICON DIODE
    Vibration tube 7T69RB
    Maximum pressure 500kg
    Max gap of electrodes 100MM
    Size of active horn 100MM
    Size of upper electrode 500*700mm
    Size of working plate 600*800mm
    Scale of temperature TC~200°C Adjustable
    Welding time 0~10S Adjustable
    Productivity Equal or less 6000times/8h
    Net weight 1600kg
    Dimension 4500*1250*2000

    Standard equipment:

    Name Origin Brand
    Air driven components Taiwan Airtac
    AC contactor Korean LG
    Relay Japan Omron
    Electron Tube Japan Toshiba
    Time controller Taiwan CKC

    MFR: KEEPLEADER™ have modified and designed Clear Box Making Soft Crease Folding Line Forming HF Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

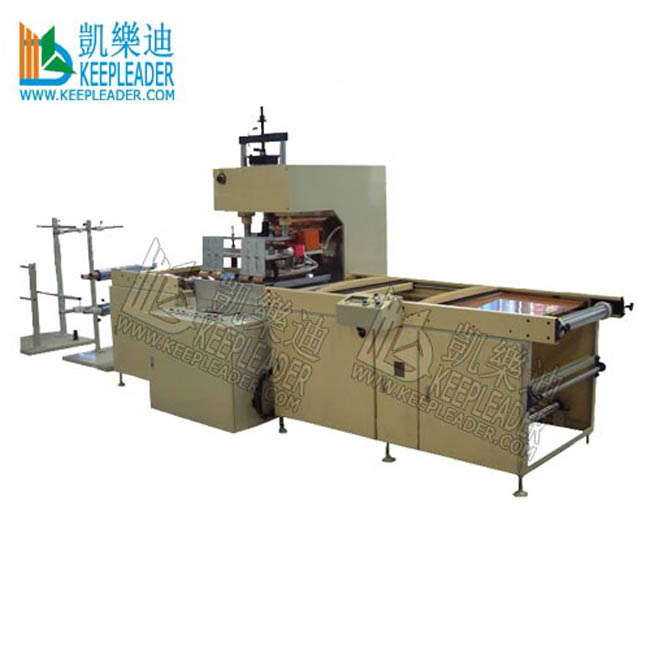

    Clear Box Making Soft Crease Folding Line Forming HF Machine is suitable for plastic box making with soft crease folding line made of PVC,PET, APET, PETG,GAG and other Eco-friendly plastic films, this machine integrates auto flattening device for rigid material, auto transfer the plastic in rolls, high frequency dent pressing soft crease with stripping line and collecting deice to exert automatic production, it also can cater for manual production in feeding plastic sheet by sheet

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/

  • Previous:
  • Next:

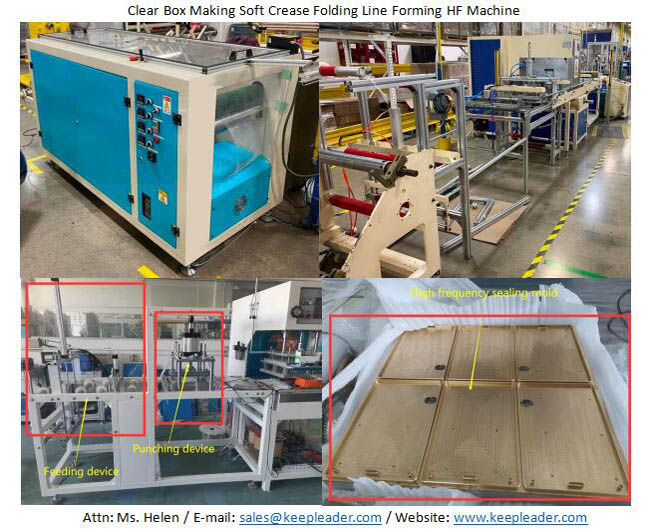

    • Clear Box Making Soft Crease Folding Line Forming HF Machine is fabricated configurations in #1: Automatic Rigid material flattening device in roll feeding #2: Rolling material transfering system with standing frame #3: High frequency dent pressing and edge stripping structure #4: interchangeable Mould and #5: Punching unit #6: Optional printing sect just make to order

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/

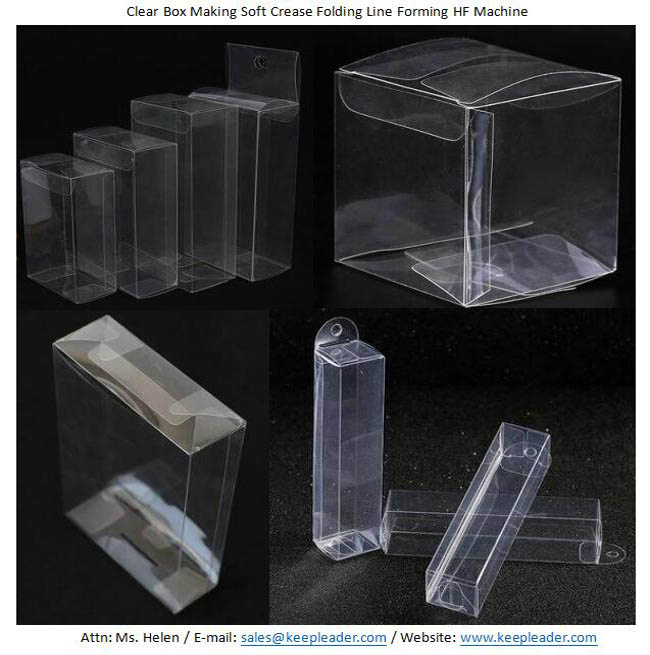

    Clear Box Making Soft Crease Folding Line Forming HF Machine is available for transparent box making with soft crease at square shape of customized size,its production mold is interchangeable for versatile production, one circle output combines multiple boxes, but its maximum size depends on high frequency output

    https://www.hfwelds.com/products/foldableplastic-box-crease-die-cutting/

    Clear Box Making Soft Crease Folding Line Forming HF Machine fabricates optional construction in Manual and Auto loading in making Square shaped Transparent folding Box with soft crease, interchangeable molds take versatile production in shape and size, depends on the materials property, if rigid material is used, flattening device is integrated, and punching device is another configued element for multiple layer boxes making if have punching hole applied, keepleader never halt the development for our customer’s individual production, such as printing and auto collection, our technical team alwasy cate to fresh trends in market, which is intended for cooperative value of cost-saving,reliable, consistent, qualified,eased operation and maintenance, you just initiate your concerns for our tech evaluation, our experts work a specified solution for your confirmation prior to fabrication

    ☺ Attn: MS Helen

    ✉ E-mail:sales@keepleader.com

    ☎ Cellphone: +86 13590415784 (Wechat/Whatsapp)

    ☎ Tel: +86 755 84190358

    ☞ Website: www.hfwelds.com / www.keepleader.com
