HF Canvas Welding Machine for Canvas Stretching Plastic Welder of High Frequency PVC Stretch Ceiling Canvas Welding Machine

HF Canvas Welding Machine for Canvas Stretching Plastic Welder of High Frequency PVC Stretch Ceiling Canvas Welding Machine Featured Image
  • HF Canvas Welding Machine for Canvas Stretching Plastic Welder of High Frequency PVC Stretch Ceiling Canvas Welding Machine

Short Description:

HF Canvas Welding Machine for Canvas Stretching Plastic Welder HF Canvas Welding Machine for Canvas Stretching Plastic Welder Mainly application large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural, canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film c...


  • Model: KLR-8KW/15KW-SN
  • HF Power: 8kw/15kw
  • Top Electrode: 50*50*800~1500mm
  • Throat Depth: 75~115mm
  • Stroke Depth: 100~150mm
    • Download as PDF

    Product Detail

    Details

    Uses

    Tooling

    Product Tags

    HF Canvas Welding Machine for Canvas Stretching Plastic Welder

    HF Canvas Welding Machine for Canvas Stretching Plastic Welder

    Mainly application
    large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural, canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising / printing/ Film cloth, the membrane structure, etc.

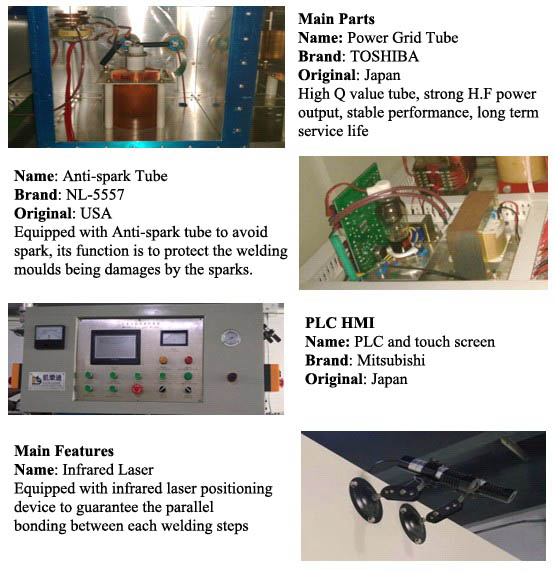

    General Features
    length, width, curve of welding electrode is optional and adjustablesquare high frequency vibration box, more reliable and stable in outputSingle line or two lines continue welding, welding length can be customized

    CE rated machine; factory verified by SGS

    Customer’s site installation, training & maintenance available

    pedal valve control in double side for easy operation

    Customized work table dimensions, electrode holder dimensions, tooling

    with laser light to make precision position

    Servo-motor;  Touch screen programmable HMI / PLC

    HF Filter unit available

    Groove length is up to 1.5m, welding length is up to 50mm

    Parameter
    Model KLR-8KW-SN KLR-15KW-SN
    Output Power 8000W 15000W
    Anti-Spark 5557 High sensitive anti-spark system
    Voltage 3P AC 380V 50Hz-60HZ or customize
    Frequency 27.12MHz+/- 0,6 % 13.56MHz+/- 0,6 %
    Input power 15KVA 25KVA
    Rectifier SILICON DIODE
    Oscillation tube 7T69RB 8T85RB
    Max pressure 500kg 1000kg
    Operation mode Pneumatic Operated
    Max gap of electrodes 120mm
    Size of active horn 100mm 100mm
    Upper Electrode 100*800mm 100*1500mm
    Size of Work Table 120*800mm 120*1500mm
    Welding time 0.01~9.99s adjustable 0.01~9.99s adjustable
    Net weight 800kgs 1000kgs

    MFR: KEEPLEADER™ have modified and designed HF Canvas Welding Machine for Canvas Stretching Plastic Welder  for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details

    HF Canvas Welding Machine for Canvas Stretching Plastic Welder have high frequency power: 4kw~25kw for various welding length, functional modification  is also acceptable
