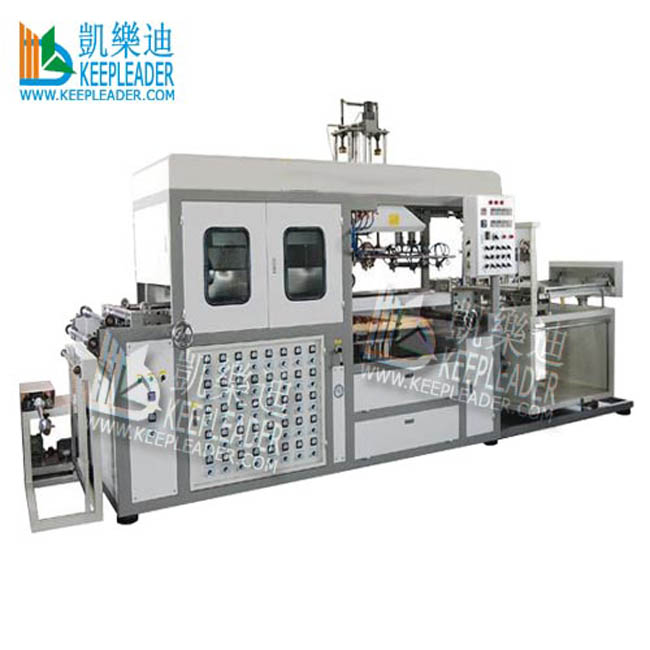

Blister Vacuum Forming Machine of Automatic Blister Thermo Vacuum Forming machine

Short Description:

vacuum thermoforming machine Mainly application Applied for the thickness of 0.1mm-3.0mm for PVC, PS, PET, PP, OPP flocking, antistatic, conductive film, vacuum thermoforming, sheets or rolling feeding is optional, which is manly for toys, electronics, food, medicine, hardware, tools, gift packaging, etc. character Servo motor imported from Japan drive to pull the sheets, which is more stable, reliable independent temperature control groups: the intensive use of special plane far o...


  • Model: KLY-700/1200
  • Max Forming Size: 700*1200mm
  • Forming Thickness: 0.1~1mm
  • Gross Weight : 2800kgs
  • Product Detail

    Details

    Uses

    Shipment

    Product Tags

    vacuum thermoforming machine
    Mainly application
    Applied for the thickness of 0.1mm-3.0mm for PVC, PS, PET, PP, OPP flocking, antistatic, conductive film, vacuum thermoforming, sheets or rolling feeding is optional, which is manly for toys, electronics, food, medicine, hardware, tools, gift packaging, etc.
    character
    Servo motor imported from Japan drive to pull the sheets, which is more stable, reliable

    independent temperature control groups: the intensive use of special plane far outside the ceramic heating element by the device, temperature uniformity, energy saving 50% higher than traditional machines

    electric furnace in a closed heating to heat more evenly and reduce heat loss, accompanied by a manual switch controlling furnace vertically and help in the production process to control product quality, thick film can be used up and down double electric cooker (client customized ) speed up the heating time and increasing production speed

    The machine is equipped with shock ejection device, stripping easy

    The whole machine is equipped with cooling water transport and high speed cold water spray to accelerate the forming speed and ensure the forming quality, production speed twice as fast than the traditional machine

    Built-in set of secondary vacuum, so the product more difficult shape, improve product quality and reduce the rejection rate

    parameter
    model KLP-700/1200
    Forming width 700mm
    Forming length 1220mm
    Forming height 180mm
    power 280V/220V/50HZ
    Heating power 15-39KW
    Air pump 11KW
    productivity 220-500time/huor
    Power connection 380V/220V 50HZ (3phase, 4 wires)
    Power consumption of whole machine 20-25KW
    Air pump applied 20HP
    Operation system Digital
    10.4 inch PLC control
    Overall dimension L6000mm*W1500mm*H2800mm
    Net weight 2600KG

    MFR: KEEPLEADER™ has modified and designed Blister Vacuum Forming Machine to accommodate our customers’ unique requirements, pls contact KEEPLEADER™ for updated tech files

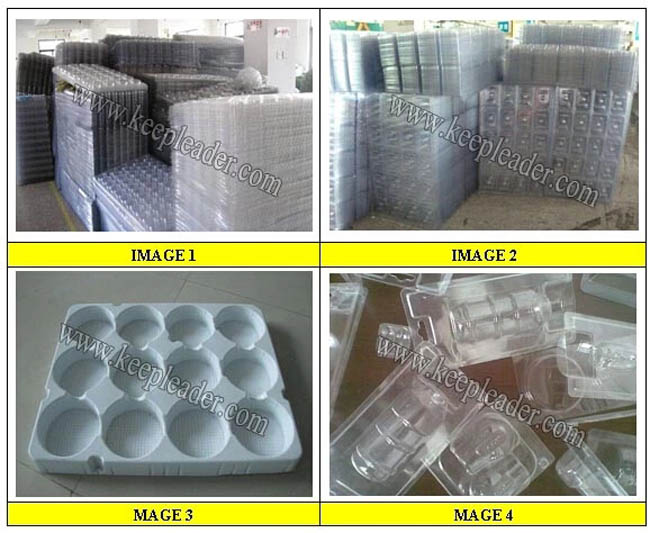

    Blister Vacuum Forming Machine used for forming PVC, PET,PS  Blister packages

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/


  • Previous:
  • Next:

  • Blister Vacuum Forming Machine has stocked for urgent order

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    Blister Vacuum Forming Machine can form the blister of thickness 0.1~1mm

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

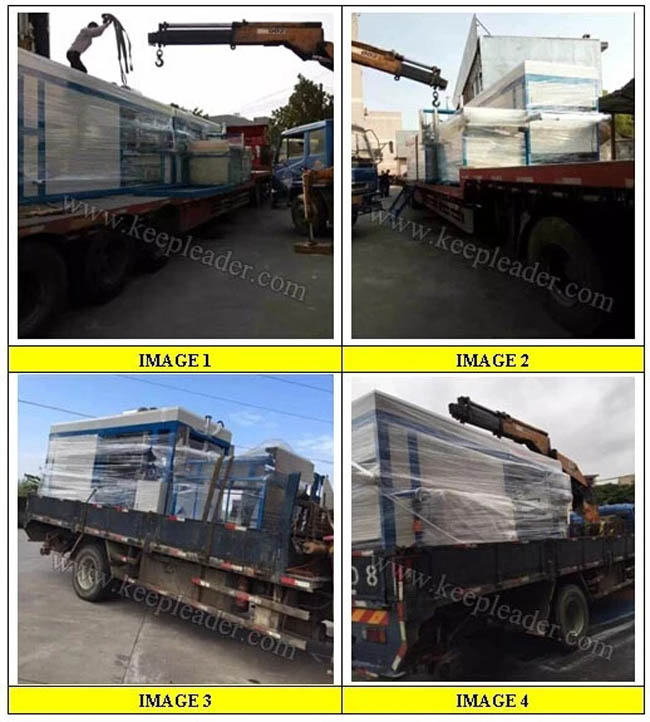

    Blister Vacuum Forming Machine is shipped by shipe, the detailed packing standard is negotiable
