Hot Air Tape Welding Machine for PVC PE Banner Hot Air Welding of Tarp Hot Air Taping And Welding Machine

Short Description:

This “Hot Air Tape Welding Machine” is basic model, if you need bench for convenient feeding, pls advise us to choose professioanl model for you Hot Air Tape Welding Machine Mainly introduction Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfec...


  • Model: KL-300
  • Output Power: 3kw
  • Sealing Speed: 1~14 meters
  • Weight: 250kgs
  • Product Detail

    Images

    Uses

    Tech

    Product Tags

    This “Hot Air Tape Welding Machine” is basic model, if you need bench for convenient feeding, pls advise us to choose professioanl model for you

    Mainly introduction

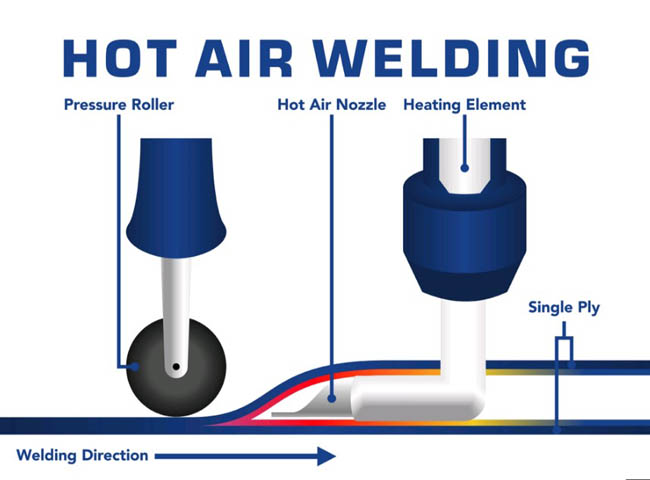

    Hot air welding machine has unique advantage in inflatable products made of membranes structure, which is total different with high frequency welding and hot melt welding technology, the hot air is blew between the sealing surface, under necessary suitable pressure to get perfect welding effect, PVC, TUP material are all available, which are made to water polo, water drum, grass ball, inflatable swimming pool, large inflatable tents, inflatable boats, rubber boats and fishing boats and etc
    Character
    Suitable for any size of inflatable products made of PVC,TPU
    PLC, Visible to operation, and convenient to reset parameter
    Self-control temperature, the tolerance is within 2 degree
    According to ergonomic design of dual-pedal control
    Work around the clock, higher production efficiency
    Special design of heating tube, hot air is filtered without moisture
    Super-power design of large torque
    Parameter
    Model
    KL-300
    Power
    3000w
    Frequency
    AC 220V,50hz
    Temperature
    0 to 700
    Sealing speed
    1 to 18m/min
    Air pressure
    0.35 to 0.5mpa
    Pinch roller
    30mm(optional)
    Diameter of gun mouth
    24mm/27mm (optional)
    Roller stroke
    18mm to 25mm
    Overall size
    1500*720*1600mm
    Net weight
    250kgs
    MFR: KEEPLEADER™ has modified and designed Hot Air Tape Welding Machine to accommodate our customers’ unique and special requirements, pls contact KEEPLEADER™ for tech assessment
