HF Welder Blister Package Sealing High Frequency Card Welding Machine of PVC_PET Clamshell Packing Auto Rotary RF Plastic Sealer

Short Description:

HF Welder Blister Package Sealing High Frequency Card Welding Machine 01:Application HF Welder Blister Package Sealing High Frequency Card Welding Machine is automatic rotary index HF Welding machine, integrates with auto unloading device of robotic arm, and has free-standing auxiliary device of building-in automatic loading paper-cards for whole auto production if have paper cards arranged in blister packages, this high frequency welding machine is capable for sealing versatile blister pack...


  • Name: HF Welder Blister Package Sealing High Frequency Card Welding Machine
  • Model: KLR-5000ET/KLR-8000ET
  • HF Power: 5000w/8000w
  • Upper Electrode: 200*350mm/400*600mm
  • Weight : 580kgs/750kgs
  • Product Detail

    Details

    Uses

    Contact

    Product Tags

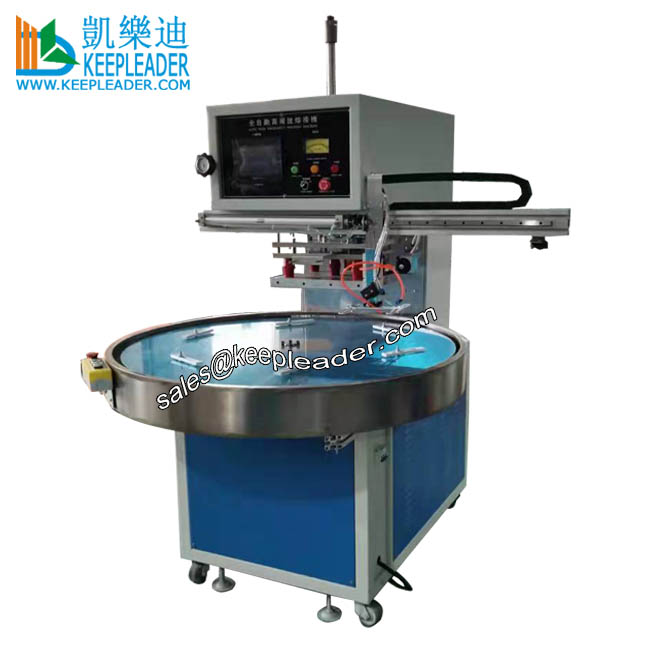

    HF Welder Blister Package Sealing High Frequency Card Welding Machine

    01Application

    HF Welder Blister Package Sealing High Frequency Card Welding Machine is automatic rotary index HF Welding machine, integrates with auto unloading device of robotic arm, and has free-standing auxiliary device of building-in automatic loading paper-cards for whole auto production if have paper cards arranged in blister packages, this high frequency welding machine is capable for sealing versatile blister packaging, such as PVC and PVC blister/clamshell sealing and cutting in a circle process, PVC blister/clamshell and paper cards sealing only sealing without cutting process, PET blister/clamshell and paper cards only sealing without cutting and PET and PET blister/clamshell only sealing without cutting, the quantities of working position is ranged from 3 to 6pcs depends on specified size and shape for prominent capability

    02: Parameter

    HF Welder Blister Package Sealing High Frequency Card Welding Machine
    Model KLR-5000ET KLR-8000ET
    HF Power Output 5000w 8000w
    Power Input 8KVA 45KVA
    Voltage AC 110V/220V/380V/415V 50HZ/60HZ
    Frequency 27.12Mhz 27.12Mhz
    Oscillation tube 7T85RB 7T69RB
    Upper Electrode 200*350mm 400*600mm
    Lower Electrode 400*600mm 600*800mm
    Electrode Excursion 150mm 150mm
    Timer 1~10S 1~10S
    TEMP control 0~400 degree 0~400 degree
    Rectifier Silicon Diode Silicon Diode
    Driving Mode Pneumatic Pneumatic
    Dimension 1000*950*1780mm 1100*1100*1980mm
    Gross Weight 580kgs 750kgs

    03: Salient Features

    Equipped with rotary indexing gear controlled working with high frequency alternatively

    Touch screen HMI and programmable Logic control is convenient operation

    Heated upper platen with thermostat to assist on HF sealing,especially for non HF weldable material

    Shift from HF welding to only heat welder to satisfy flexible production in specific condition

    European-model square high frequency oscillation barrel takes reliable and stable HF output

    High Q valve oscillation tube, strong in output of High frequency power

    High sensitive anti-spark device to protect the welding mold and material

    Quick molds change-over to suit various welding in size and shape

    No radiation to person around and other electronic device

    Famous brands components, such as AirTAC,OMRON, CKC and etc

    C-frame welded steel structure integrated in HF generator

    Automated HF welding cycles with adjustable rotary speed

    Universal usage for PVC,PET,PETG,APET,GAG,PU,PET and PLA films

    Equipped with robot arm for auto unloading process in automatic production

    HF Welder Blister Package Sealing High Frequency Card Welding Machine is universal HF welder of Plastic blister sealing in Clamshell packaging production, G-frame structure construction integrated with automatic rotary indexing table and robotic unloading device to achieve automatic production, its HF power output ranges from 5kw to 15kw, supports quick-changeover welding molds of custom-shaped and specified size for versatility

    https://www.hfwelds.com/products/blister-packing-hf-welding/


  • Previous:
  • Next:

  • HF Welder Blister Package Sealing High Frequency Card Welding Machine takes prominent features in #1: High Automation degree: auto turntable indexing with high frequency alternation; automatic robotic unloading device, auto loading paper card is available to combine a whole automatic production in blister packaging #2:Flexible operation: quick shift in auto and manual mode, close the automatic turntable, the working model also set manual stationary status as a free-standing model, touch screen is convenient accessed in setting, operation, reading with programmable logic control system #3: customized solution: support quick-changeover upper electrodes and bottom nests among different blisters/clamshell in shape and size, automatic feeding paper card and loading parts are acceptable in construction as per demands

    https://www.hfwelds.com/products/blister-packing-hf-welding/

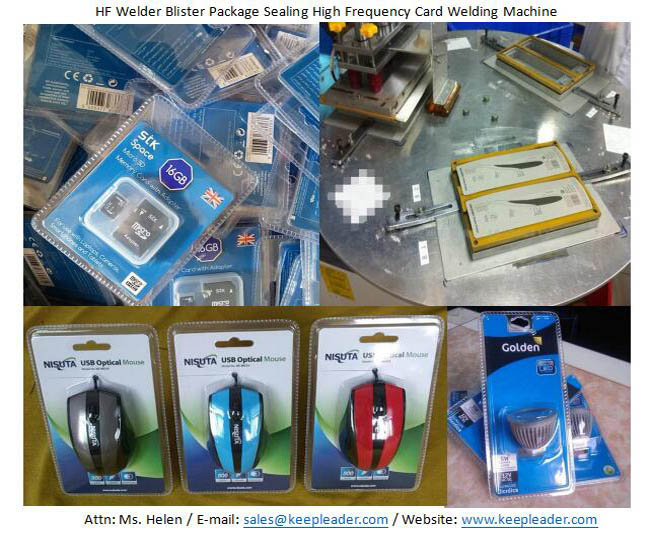

    HF Welder Blister Package Sealing High Frequency Card Welding Machine adopts HF welding principle, which designed mainly for paper card and blister sealing, double blister welding, blister packages are widely applied in blister packages bonding of hardware, stationary, toys, electron, cosmetic, lighten, Pen, socket, injection, battery, toothbrush, lipstick, automotive parts, household applications, healthcare, and medical products, high frequency can exert edge-trimmed sealing achieve a good appearance in clear packaging market, which also can improve not only protective but also advertising effect, the sealing width, pattern both are available in specification

    https://www.hfwelds.com/products/blister-packing-hf-welding/

    KEEPLEADER is reliable supplier in blister sealing, HF Welder Blister Package Sealing High Frequency Card Welding Machine is our semi-automatic solution in welding of PVC/PET Blister packaging, which also can combine your or specified automatic feeding, loading device for large scale production, if the configuration and parameter herein are not your concerned, please consult with your sales with your expectation, we promise to complete them after technical confirmation, and let your double examine prior to production
