Plastic Cylinder Box Making Cylindrical Tubes Forming Machine of Semi-Automatic Wrapping_Folding Transparent Round PVC_PET Boxes

Short Description:

Plastic Cylinder Box Making Cylindrical Tubes Forming Machine 01: Application Plastic Cylinder Box Making Cylindrical Tubes Forming Machine is semi-automatic packaging box cylinder making machine, suits for all kinds of PVC, PET, APET,PETG,PC Cylinder box, clear cylinder gluing, roundish box side gluing, packing cylinder box side sealing/bonding/cementing, transparent cylindrical box packaging has popularity in packing candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack fo...


  • Name: Plastic Cylinder Box Making Cylindrical Tubes Forming Machine
  • Model: KLY-200D
  • Cylinder Diameter: 45~200mm
  • Cylinder Length: 15~350mm up 460mm
  • Productivity: 12~14pcs / Minute
  • Product Detail

    Details

    Uses

    Contact

    Product Tags

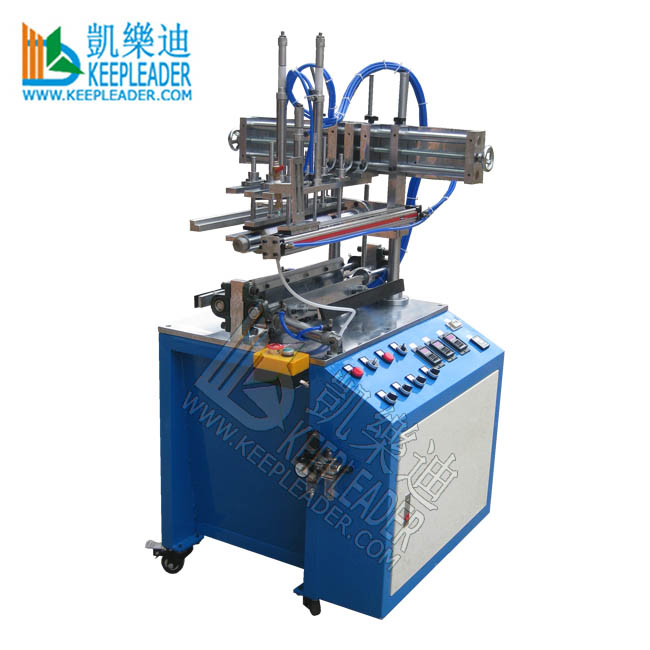

    Plastic Cylinder Box Making Cylindrical Tubes Forming Machine

    01: Application

    Plastic Cylinder Box Making Cylindrical Tubes Forming Machine is semi-automatic packaging box cylinder making machine, suits for all kinds of PVC, PET, APET,PETG,PC Cylinder box, clear cylinder gluing, roundish box side gluing, packing cylinder box side sealing/bonding/cementing, transparent cylindrical box packaging has popularity in packing candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other daily necessities, but only for making cylinder packages body, must combine with other processing machine for the completed production such as edge curling, box lid and bottom making, and bottom bonding, anyway, keepleader can provide one-stop service in supplying all of relative machines to satisfy your practical production with specified construction

    02:Parameter

    Name Plastic Cylinder Box Making Cylindrical Tubes Forming Machine
    Model KLY-200D
    Voltage 220v,50hz or 110v,60hz
    Heating Power 1500w
    Ultrasonic Power 3200w
    Control System Siemens PLC
    Pneumatic 3~6kgs/cm2
    Cylinder Diameter 45~200mm
    Cylinder Length 15~350mm up 460mm
    Sheet Thickness 0.18~0.55mm
    Bonding Process Gluing or ultrasonic welding
    Productivity 12~14pcs / Minute
    Suitable Materials PVC,APET,PETG,PC
    Weight 280kgs
    Dimension 800*700*1700mm

    03: Salient Features

    Advanced tech of spray gluing to take cosmetic bonding appearance without bubbles, white dots

    The spraying speed and scales are adjustable in precision control to achieve clear bonding performance

    Programmable logic control with touch screen is convenient and readable in setting parameter

    Pneumatic and electronic components is complied with international standard

    The triggering system is optional between pedal valve and auto timer control

    Adopt glue storing jar to apply spraying pressure to coat even and strong bonding process

    Machined mechanical components in precision to achieve perfect alignment in whole process

    Plastic Cylinder Box Making Cylindrical Tubes Forming Machine is used for making tubes of clear or printed cylinder box made of PVC, PETG, APET, Semi-automatic process of manual loading and unloading, auto wrapping and gluing or bonding, is taken into flexible production

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/


  • Previous:
  • Next:

  • Plastic Cylinder Box Making Cylindrical Tubes Forming Machine is semi-automatic cylinder tube forming in making cylindrical box, which is auto gluing the laminated seam after wrapping, will combine with edge curling, lid and bottom making machine in the whole production, we integrate ultrasonic friction heat bonding seam into auto cementing process as extra option in flexible production

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    Plastic Cylinder Box Making Cylindrical Tubes Forming Machine takes semi-auto process in cylindrical box wrapping when making clear/transparent or printed cylinder box, auto folding the sheets into round to next procedures of gluing or ultrasonic welding overlap seam, which is favored for flexible production with interchangeable mandrels to satisfy various length and diameter of transparent/clean or printed cylinder box, which is cost-efficient and favorable packaging in field of industrial components, cosmetic, stationary, daily necessaries, health care, slid food packaging

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    Plastic Cylinder Box Making Cylindrical Tubes Forming Machine will combine with other processing machine in the whole production of making plastic cylindrical box, such as, bottom and lid making machine, bottom sealing/welding/gluing machine and edge curling machine, all of them respectively have their differences in details, our consideration in option is just to satisfy each individual production with flexibility, reliability, consumption, efficiency and productivity, please dont hesitate to afford your preferred salient characters that we will do for you, believe that our experienced staffs can work out a reasonable solution for your practical manufacturing
