PVC Foldable Bag High Frequency Welding Machine for Waterpoof Dry Bag Radio Frequency Welding Machine of Transparent Bag Welding

Short Description:

PVC Foldable Bag High Frequency Welding Machine of dual heads is universal high frequency welding, used for small size with Convenient position in welding Main application Applied for high frequency blister packaging, soft crease box/case making, inflatable toy, plastic port and valve, raincoat, plastic bags, leather logo embossing, trademark embossing or any PVC and PVC contained 30% up Character High Q value oscillation tube The high frequency complies with international standard...


  • Model: KLR-5000TA
  • HF Power: 5000w
  • Upper Electrode: 120*290mm
  • Net Weight : 380kgs
  • Dimension: 1720*1100*1500
  • Product Detail

    Images

    Uses

    Product Tags

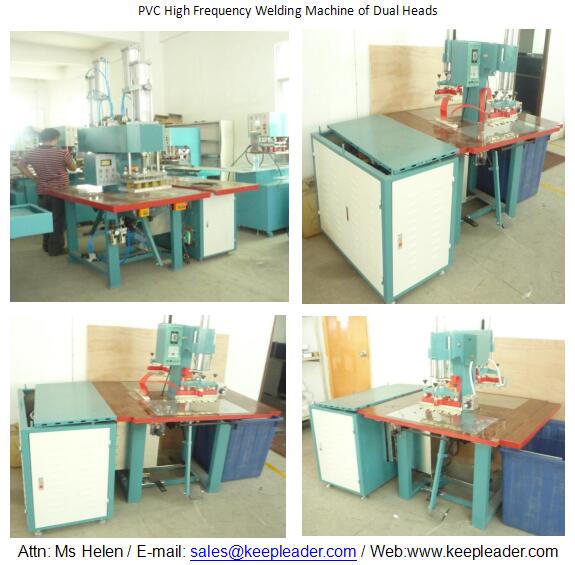

    PVC Foldable Bag High Frequency Welding Machine of dual heads is universal high frequency welding, used for small size with Convenient position in welding

    Main application

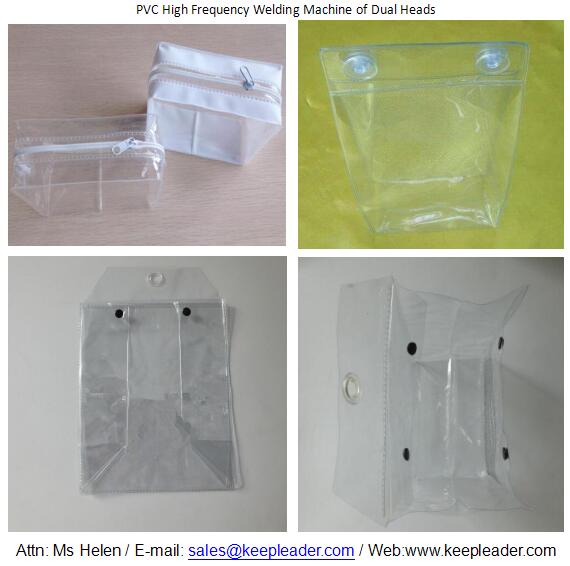

    Applied for high frequency blister packaging, soft crease box/case making, inflatable toy, plastic port and valve, raincoat, plastic bags, leather logo embossing, trademark embossing or any PVC and PVC contained 30% up

    Character
    High Q value oscillation tube

    The high frequency complies with international standard: 27.12 MHz

    The machine can keep static for power sudden failure

    High sensitive anti-sparkle device NL 5557 to avoid damaging the mould.

    High quality Imported apparatus

    European-model high frequency vibration barrel, more reliable and stable in output

    Automatic thermostat to keep the temperature at best performance in welding

    High precision high frequency regulating knob for visible control

    Low voltage control panel for safety purpose

    Anodized mould and tooling for longer life-span

    Top amounted cylinder for vertical pressing, which is more uniform pressure

    Over current protection circuit to avoid burning the oscillation tube

    Power ranges 4kw up to 10kw for various welding size

    The welding electrode is screw fixed, which is easy replacement

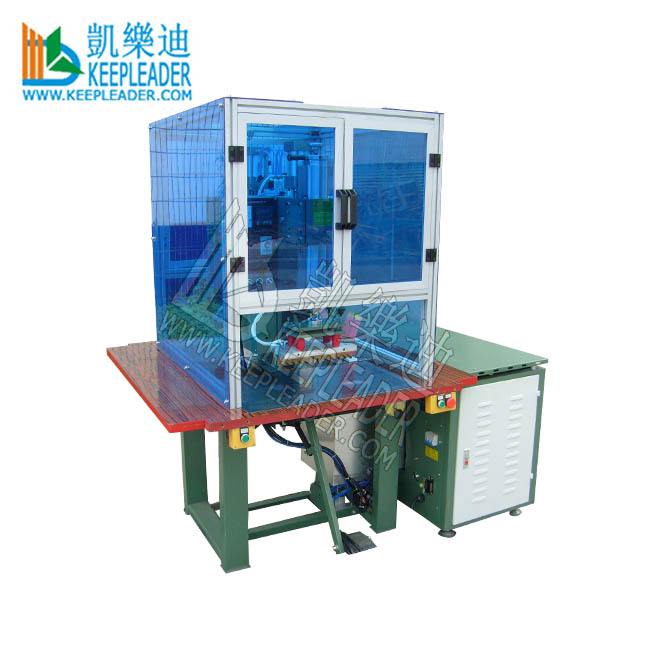

    High frequency shield to avoid omission is optional

    Giving pressure by level elbow joint, which can save the strength

    Stroke distance and horizontal of electrode are adjustable

    One oscillation vibration system control double working position

    Thick steel plate bracket, more steady for giving pressure

    Imported famous brand electronic and pneumatic components

    High frequency welding machine for inflatable products

    Technique specifications
    Model  KLR-5000TA/KLR-8000TA
    Power  5000W/8000W
    Voltage 220V/380V   50/60HZ
    Frequency 27.12MHZ
    Input power  8KVA/15KVA
    Rectifier SILICON DIODE
    Oscillation tube  7T85RB/7T69RB
    Max pressure 350kg/450kg
    The gap of electrode 160~200MM
    Stroke distance 60MM
    The size of upper electrode 120*290mm
    The size of lower electrode  350*700mm
    The range of temperature 30~200°C Adjustable
    Welding time 0~10S Adjustable
    Way of pressure Foot operated
     Productivity 3000~4000times/8h
    Net weight  330kg/380kg
    Overall dimension  1800*1200*1600

    MFR: KEEPLEADER™ have modified and designed PVC Foldable Bag High Frequency Welding Machine for our customers’ unique and special requirements, please contact KEEPLEADER™ for updated details
