Fully Automatic Cup Bowl Box Lid Thermoforming Machine of Lunch box Thermoforming Machine of Blister Thermoforming Machine

Short Description:

Fully Automatic Cup Bowl Box Lid Thermoforming Machine 01: Parameter Name  Fully Automatic Cup Bowl Lid Box Thermoforming Machine Model KLY-350 KLY-450 Forming length 320mm 410mm Forming width 150mm 150mm Forming depth 30mm 45mm PVC width 330mm 420mm Material thickness 0.2*1.5mm 0.2*1.5mm Production speed 8~32 times/ minute 8~32 times/ minute Power 4.6kw 4.6kw Water consumption 0.2m3/h 0.2m3/h Material PVC/PET/APET/PETG PVC/PET/APET/PETG Power supply 220/380v*3p 50/50...


  • Model: KLY-350
  • Forming Length: 350mm
  • Forming Width: 150mm
  • Forming Depth: 30mm
  • Gross: 800kgs
  • Product Detail

    Images

    Uses

    Product Tags

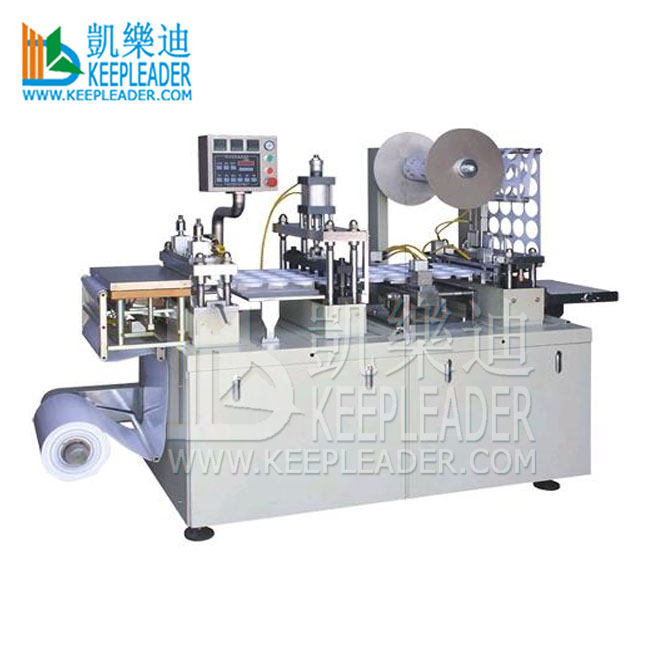

    Fully Automatic Cup Bowl Box Lid Thermoforming Machine

    01: Parameter

    Name  Fully Automatic Cup Bowl Lid Box Thermoforming Machine
    Model KLY-350 KLY-450
    Forming length 320mm 410mm
    Forming width 150mm 150mm
    Forming depth 30mm 45mm
    PVC width 330mm 420mm
    Material thickness 0.2*1.5mm 0.2*1.5mm
    Production speed 8~32 times/ minute 8~32 times/ minute
    Power 4.6kw 4.6kw
    Water consumption 0.2m3/h 0.2m3/h
    Material PVC/PET/APET/PETG PVC/PET/APET/PETG
    Power supply 220/380v*3p 50/50hz 220/380v*3p 50/50hz
    Water pressure 0.2mpa 0.2mpa
    Air pressure 0.5~0.7mpa 0.5~0.7mpa
    Weight 800kgs 900kgs
    Overall dimension 2150*950*1750mm 2150*950*1750mm

    02: Thermoforming machine introduction

    Fully Automatic Cup Bowl Lid Box Thermoforming Machine is a newly developed machine with success to meet the needs in the market by keepleader technical team, it is characterized by easy operation, lower energy consumption, it is suitable for thermoforming foodstuff, lunch box,  blister, Cop, bowl, cylinder tube lid, medical equipments and the trays for electronic elements, it is integrated multi functions like conveyor, blister thermoforming, plate punch and counting displaying, the size of forming can be customized

    03: Application

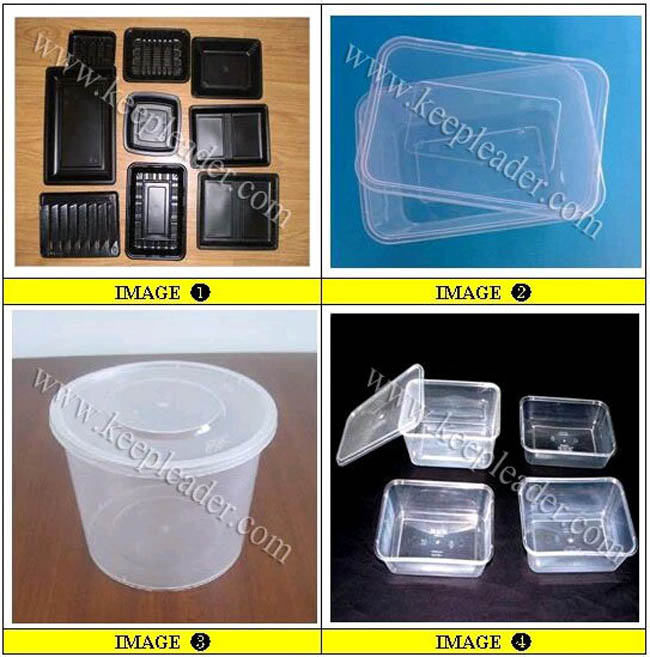

    Plastic Cup, Bowl, Box, Various Blister, Container lid, Hardware tray, food tray, pharmaceutical tray, PS/PVC/PET Plastic cup cap and Various blister packages, thermoforming and punching in one machine for Plastic material like PS/PVC.PET etc

    04: Working process

    PVC unreeling; PVC heating; Blister tray thermoforming; Servo drawing; Blister tray cutting; PVC waste edge reeling

    05: Blister thermoforming Features

    Improve product hygiene and safety, meanwhile, revolve cross contamination

    Roll Film loading, forming, hole punching, punching output, roll film

    Reclaiming six-station synchronous production, manipulate feeder

    Compact structure and stable performance, easy operations

    Enclosed Outside to avoid pollution and convenient to clean

    Stroke adjustable, mould replacement is simple, easy to change mould size, suitable for difference specification

    Can adopt PLC operation panel, convenient and visually to set and operate

    Customized mold complied with your thermoforming product

    pls contact KEEPLEADER for more info and tech assistance, for Fully Automatic Cup Bowl Box Lid Thermoforming Machine, please tell us maximum forming size and depth of your box, it is better to check your sample picture or its similar you preferred for reference

    Fully Automatic Cup Bowl Box Lid Thermo forming Machine is vacuum forming in performance of various fast food box making, the maximum forming size is customized

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/




  • Previous:
  • Next:

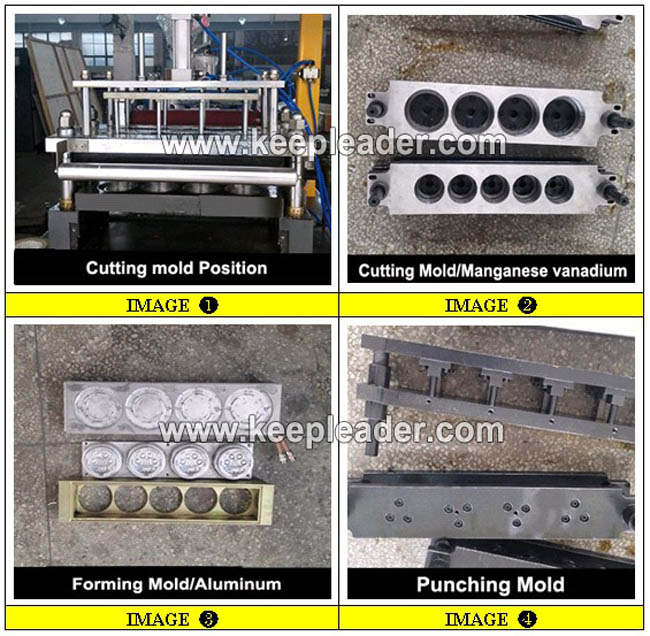

  • Fully Automatic Cup Bowl Box Lid Thermo forming Machine comes with customized tooling/molds,which will comply with your production

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

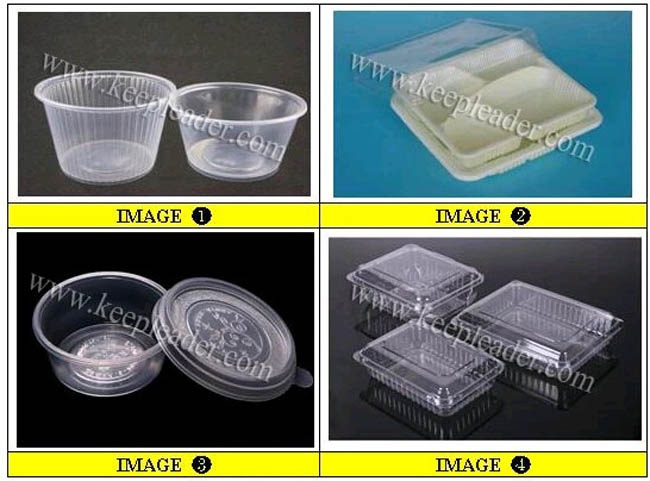

    These sample pictures just for reference for Fully Automatic Cup Bowl Box Lid Thermo forming Machine, pls show us picture of your fast food box with its size and material thickness for tech evaluation before quotation

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/
