Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling_Forming_Crimping of CylinderTube Edge Curling

Short Description:

Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling 01: Parameter Model KLY-2030 Power 4500w Forming Length 80~350mm Material Thickness 0.2~0.5mm Power input 220V,50/60HZ Driving Mode Pneumatic Air compressor 0.6Mpa Forming Speed 3pcs / 6~8 seconds Cylinder box diameter 40~200mm Overall dimension 2100*1400*2300mm 02: Application Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling is mainly applied for automatic ...


  • Model: KLY-2030
  • Power: 4500w
  • Forming Length: 80~350mm
  • Material Thickness: 0.3~0.5mm
  • Cylinder Diameter: 40~200mm
  • Product Detail

    Images

    Uses

    FAQ

    Product Tags

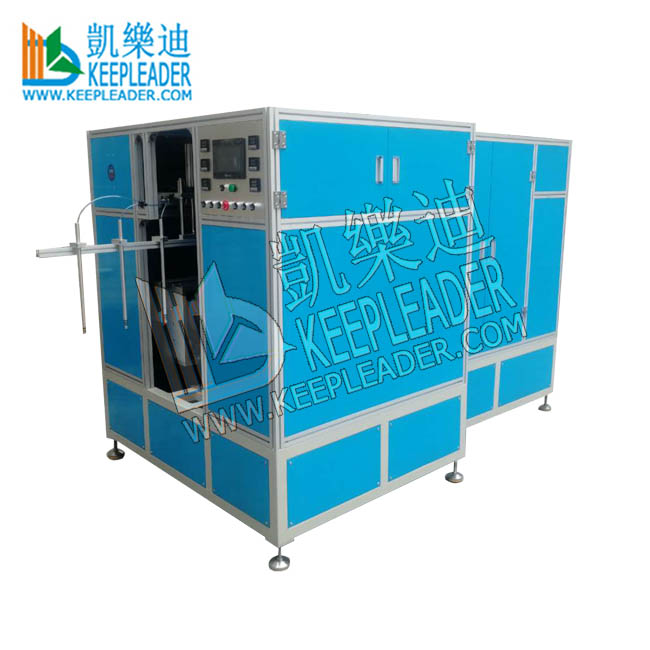

    Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling

    01: Parameter

    Model KLY-2030
    Power 4500w
    Forming Length 80~350mm
    Material Thickness 0.2~0.5mm
    Power input 220V,50/60HZ
    Driving Mode Pneumatic
    Air compressor 0.6Mpa
    Forming Speed 3pcs / 6~8 seconds
    Cylinder box diameter 40~200mm
    Overall dimension 2100*1400*2300mm

    02: Application

    Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling is mainly applied for automatic cylinder edge curling made of plastic like PVC, APET, PETG, PP and other thermo plastic, also know as plastic cylinder automatic edge curling, plastic cylinder automatic crimping,automatic paper cylinder curling, PVC,PET cylinder box edge forming, curling,crimping with automatic loading and loading function, which can combined with cylinder tube forming machine to make various cylindrical box in packaging application

    03: Character

    Suitable for Clear/transparent PVC PET Cylindrical box tube edge curling

    Servo motor installed to drive the clamping, loading and unloading

    Adopting precision linear bearing for transmitting device

    Computerized heating thermostat to soften the cylinder tube ends in precision

    Automatic correction in positioning to accurate curling tube end edges

    Dual sides curling in a circle of one with three

    Three pieces of tube in edge curling in a circle

    Combined with automatic tube forming machine in production line

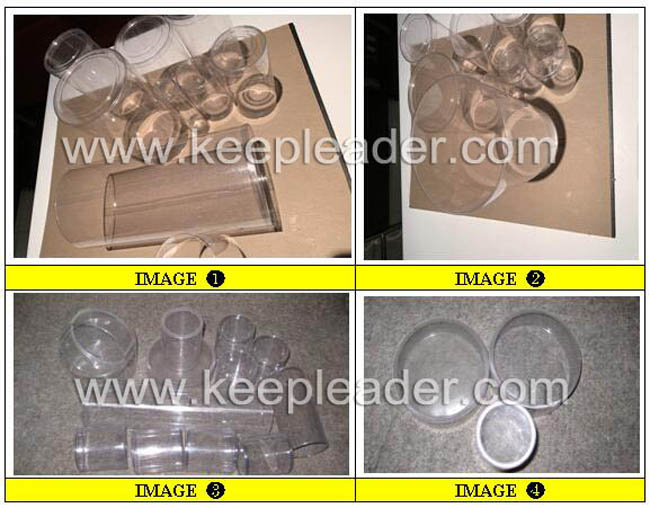

    Cylindrical box shape can be round, oval, trapezoid

     Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling to form the edge of PVC, PET cylindrical box/tube, Which can combined with  tube forming and bottom gluing/sealing machine to be a production line

    Automatic Cylinder Edge Curling Machine






  • Previous:
  • Next:

  • For Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling, the machine will come with workable mold. which will comply with your standard

    http://www.keepleader.com/en/products.asp?MenuID=47

    For Automatic Cylinder Edge Curling Machine for PVC_PET Cylinder Making Edge Curling. pls tell us your cylindrical box size and provide its sample picture for tech evaluation

    https://www.hfwelds.com/products/pvc_pet-cylinder-tube-making/

    How do you arrange the payment?

    Re: Automatic cylinder edge curling machine will packed into plywood case, the machine is fully installed in transportation, you can use it after receiving by sea freight , no need further installation or debugging

    Is difficult to install the machine?

    Re: The cylinder edge curling machine isinstalled in packaging, you just need to connect power supply and compressed air, and the mold mounted in one machine can comply with your different diameter cylinder tubes within size limited

    How does end user operate the cylinder edge curling machine?

    Re: Automatic cylinder edge curling machine comes with user manual and train video, keepleader also provide on linetechnical support in after-sales services

    Does the cylinder edge curling machine need compressed air?

    Re: If your factory has compressed airsource, just need to connect your air source with machine, if not, please buy a2Psi~5Psi air compressor, if you need use hydraulic pressure, please inform uswhen you place your order

    Does the cylinder edge curling machine power voltage meet our factory power source?

    Re: keepleader can make machine with voltage complied with your power source,

    If cylinder edge curling machine hasmold/die for your production?

    Re: keepleader design and make moulds tomatch your different size
